- Place of Origin: Hebei Xingtai
- Brand Name: Xingtai First Tractor Manufacturing Co., Ltd.
- Model Number: XT120
Product details:
Machine parameters

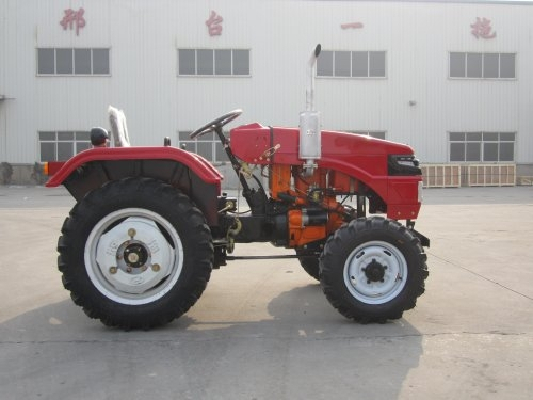

Tractor Model XT120
Type 4 × 4 wheeled tractor
Rated traction force (kN) 3.1
Dimensions (length × width × height, mm) 2285 × 1200 × 1665
Build quality (kg) 645
Use the smallest mass (kg) 755
Wheelbase (mm) 1400
Tread (front / rear, mm) narrow width 935/990 820/850
Minimum ground clearance (mm) 275
The minimum turning radius (m) 3.5
Theoretical speed (km / h) advancing 2.00 / 3.82 / 6.26 / 7.59 / 14.48 / 22.14
Back 2.00 / 7.59
O type suspension, rear three-point suspension
Non-independent PTO, clockwise, 540rpm, spline nominal outer diameter of 35mm
Tire model 4.00-12 / 7.50-16
Engine parameters
Engine Model DL190-12
Engine type Vertical, single-cylinder, water-cooled, four-stroke diesel engine
12 hours power (kW) 8.1
Speed (rpm) 2200
Starting method electric start
Bore × Stroke (mm) 90 × 110
Fuel consumption (g / kW · h) ≤251.6
Oil consumption (g / kW · h) ≤2.04
- Place of Origin: Hebei Xingtai
- Brand Name: Xingtai First Tractor Manufacturing Co., Ltd.
- Model Number: XT120
